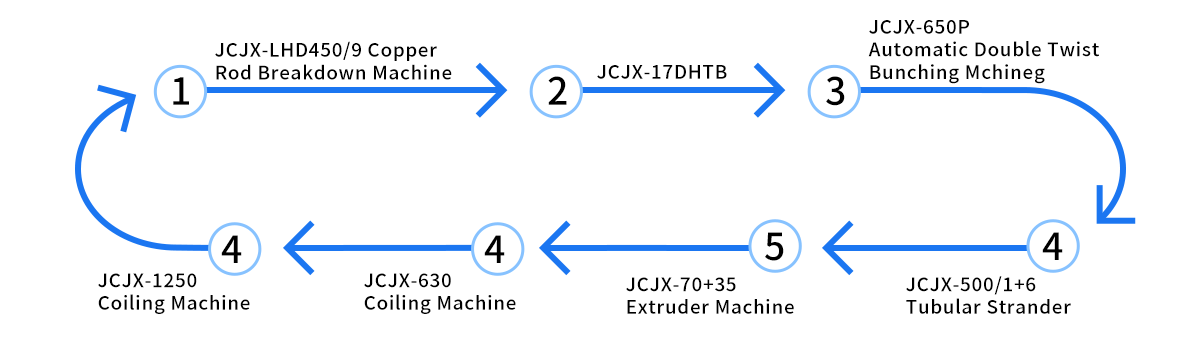

Totum est septem linearum productionis ut in sequenti figura ostensum est;
1. JCJX-LHD450/9 Copper Rod Naufragii Machina
2. JCJX-17DHTB
3. JCJX-650P Automatic Duplex Twist Bunching Machina
4. JCJX-D/1 6 Tubulare Strander
5. JCJX-70 35 Machina Extruder
6. JCJX-630 Coiling Machine
7. JCJX-1250 Machina Coiling

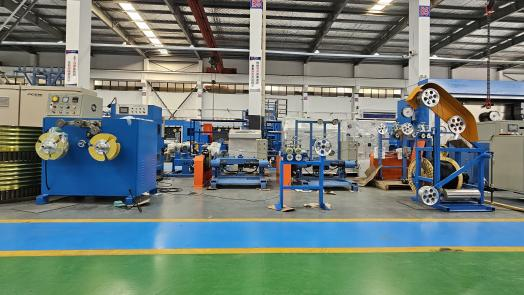

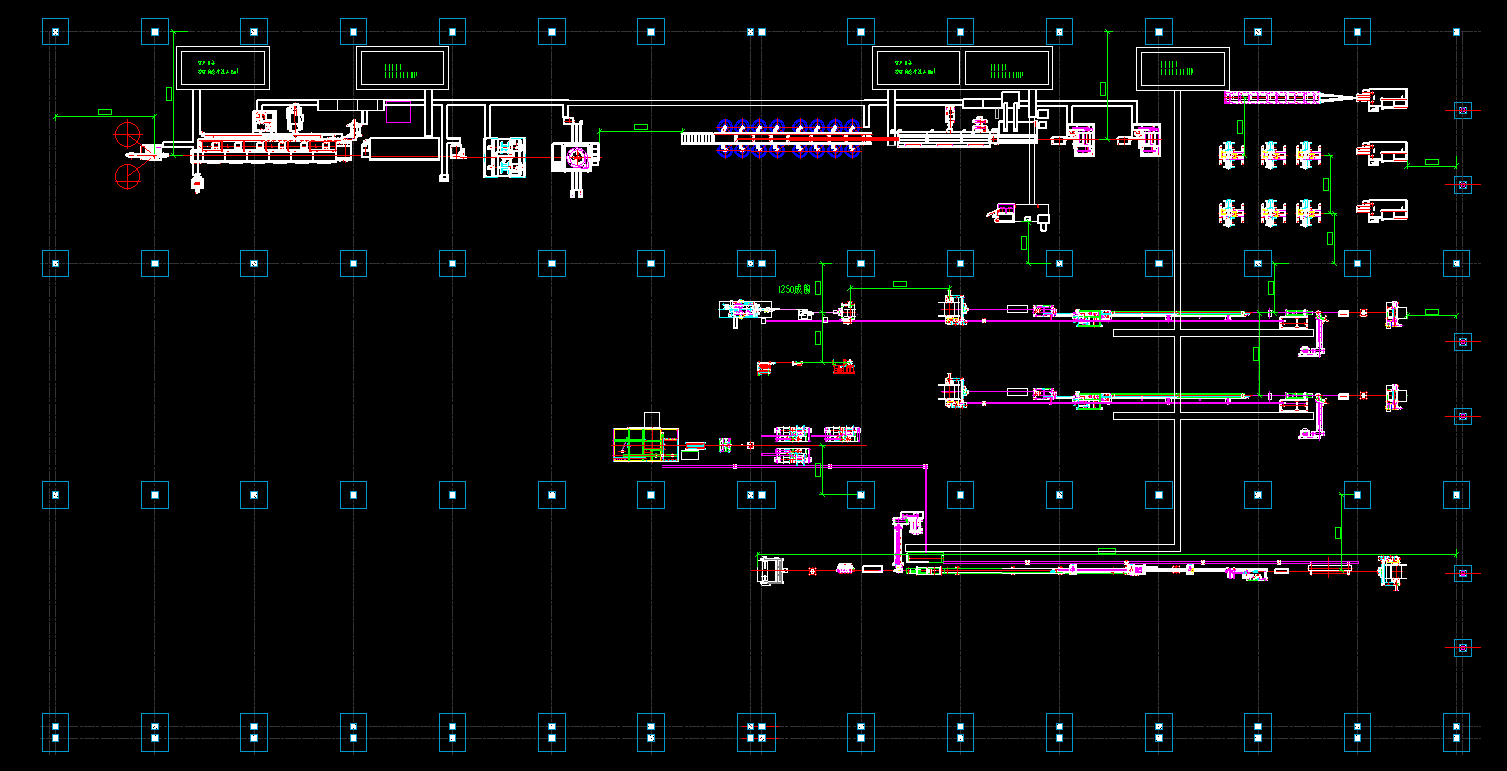

Lorem Factory consilio drawings

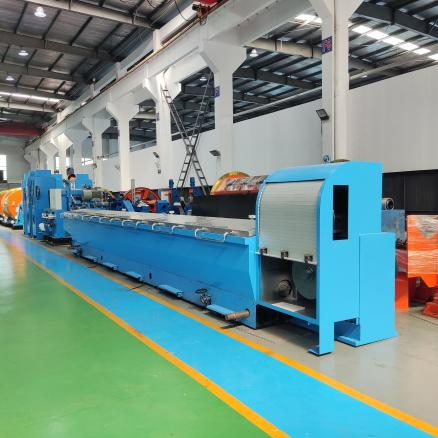

JCJX-LHD450/9
LHT450 Copper Rod Naufragii Machina est instrumentum attractivum quod filum aeneum trahit cum diametro 8mm ad 1.2mm-4.0mm. Ferrum jactum gearbox corpus habet, magno strepitu operatur, et carbide in superficie tunditur.
Dimetrum maximum: Φ 8mm
Diam output: Φ 1.2mm~ Φ 4.0mm, Φ 1.5mm~ Φ 4.0mm, Φ 2.1mm~ Φ 4.0mm.
| Apparatus Type | LHT450/13 | LHT450/11 | LHT450/9 |
| Max.Inlet Dia. (mm) | φ8 | φ8 | φ8 |
| Exitus Diae.(mm) | φ1.2-4.0 | φ1.5-4.0 | φ2.1-4.0 |
| Max.Die No. | 13 | 11 | 9 |
| Maximilianus. linea celeritate (m / s * | 25 | 22 | 20 |
| Corpus compages | Ironed cast |
| Transmissio genus | Per calces summus praecisione molere fecerunt |
| Figere velocitatem ergastulum Dia. (mm) | Figere velocitatem ergastulum Dia. (mm) |
| drawing gubernator | φ450 |
| Principalis potentia motoris (KW) | Obductis tungsten |
| Motor fix celeritas erga (KW) | 280 |
| Lubricatio genus | 75 |
| Lubricatio genus | immersio |
| Ad libitum armorum | 1. 450T continuam furnum fabrica 2. Geminatum sarculum 3. Coiler 4、WS-M accipe-up |

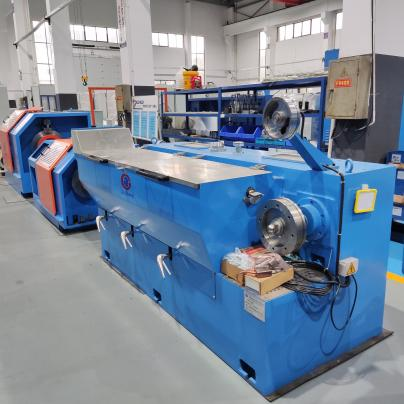

JCJX-17DHTB
Celeritas extractio est inter machinas altae celeritatis et humilis celeritatis filum trahendi. Continua furnum fabrica instructa est, quae curatio caloris online in filo efficere potest in processu trahendi ad laborem indurandi ac de metalli plasticitate retrahendum.
1. Duplex invertor auto- tensio control ratio.
2. 250 Colligite ferrum missum principale machinae, subtilitas machinae, nulla concussio.
3. Capstan tractata togam repugnant tungsten.
4. Apta continuum annales, accipe machinam cum et sine hastili, et machina gyra.
| Genus machina | 280/13DH | 300/9DH | 250/17DH | 260/17D |
| Maximilianus. Inlet Dia (mm) | Φ3.5 |
| Exitus Diae.(mm) | Φ0.65-2.80 | Φ1.2-2.8 | Φ0.4-1.6 | Φ0.4-1.2 |
| Maximilianus. Die No. | 13 | 9 | 17 | 17 |
| Maximilianus. Linea velocitatis (m/min) | 2000 | 1200 | 1800 | 1200 |
| Corpus Structure | ferrea cast | | | |
| Ratio lapsus machinae | 20% | 18% | 20% | 18% |
| Transmissio Type | 280 | 300 | 250 | 260 |
| Certo Mobilitate Capstan Dia. (mm) | Per calces summus praecisione molere fecerunt | per catenam |
| Motor Potestas-sursum (KW) | 11 (15) | 11 |
| Lubricatio Type | Plena immersio | Genus RAMULUS |
| Accipe-sursum Bobbin Location (mm) | Φ500/Φ630(Bore est Φ127mm) vel postulatione mutatur |
| Ad libitum Equipment | 1. Continua furnum fabrica 2. Coiler |
| Online Continui Annealing Fabrica |
| Type | 350T | 250T/B | 250T/A |
| Apparatus Structure | Horizontal | Vertical | Vertical |
| Annealing Rota Dia. | Φ350 | Φ250 | Φ250 |
| Annealing Wire Dia. | Φ0.8-Φ2.8 | Φ0.6-Φ2.2 | Φ0.4-Φ1.6 |
| Annealing Praesidium Type | Vapor aut Nitrogen |
| Annealing Voltage | 0-65V(DC) | 0-60V(DC) |
| Annealing Current | 0-250A(DC) | 0-(2000A,1500A,1200A)(DC) |

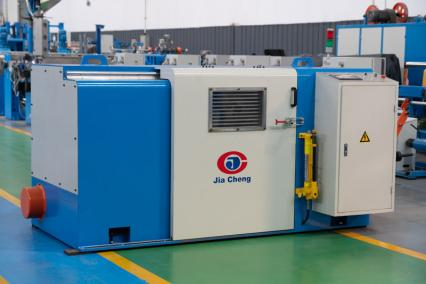

JCJX-650P Automatic Double Twist Bunching Machine
Apta est ad detorquendum filum aeneum nudum, filum stanneum et filum varnished, quod sunt plus quam 7 fila. Magnetica fregit, quae automatice dum filum frangit, magneticum pulveris genus defessa adoptat. (PLC imperium output).
1. Transducer notam adoptat INovance, Ferentes invectas faces.
2. motricium accipit notam primo-genus nationalis
3. Minimum voltage in-off, fregit summo gradu notam domi forisque amplecti.
| Apparatus Type | JCJX-300P | JCJX-500P | JCJX-500PB |
| Usus | Ad collectionem 7 aeris nudum, filum stincti, filum nominatum |
| Imperium Type | PLC HMI Inverter imperium |
| Sectio tortuosa (mm2) | 0.035-0.45 | 0.05-2.50 | 0.05-4.00 |
| Filum aeris Dia.(mm) | Φ0.05-Φ0.25 | Φ0.10-Φ0.45 | Φ0.10-Φ0.52 |
| Torquens Pix (mm) | 2.00-17.17 | 6.30-50.40 | 6.30-80.5 |
| Directio torquentem | S vel Z * |
| Accipe-sursum tensio | Contentio magnetica defessa moderata |
| Max Main Shaft Volo (r / min) | 3000 | 3000 | 2500 |
| Percurso Type | Distantia transversa et transversalis adaptari potest portando |
| ferens Lubrication | Cum caliditas oleum papilla lubricantes | Oleum tenue lubricatum, circulatio refrigerationis |
| Bobbin Loading & Unloading Type | Genus HYDRAULICUS |
| Maximilianus. Bobbin Dia. | Φ300 | Φ500 | Φ500 |
| Auto Nolite Unit | Auto- siste dum ad occasum longitudinem perveniat, et filum intus et extra fractum |
| Fregit | Magnetic fregit |
| Motor Power(kw) | 4 | 5.5 | 5.5 |
| Pelagus Shaft Altitudo Centre (mm) | 630 | 700 | 700 |

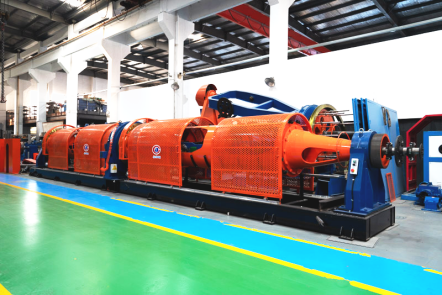

JCJX-500/1 6 Tubular Strander
Apparatus ad filum aeneum subductum, chalybeum cori aluminii filum e filo et chalybe funiculum subducto. Etiam adhiberi potest ad filum chalybeum subductis et filum insulatum.
Pro diversis exemplaribus, maximus diametri exterioris tortilis seligi potest: 12mm et 15m Secundum varia exempla, amplitudo torturae picis est 20~ 181, 20~ 331, 36~ 274
1. Operare commodum, PLC HMI invertere imperium.
2. Maximum pretium et excelsum efficientiam.
3. Maximum celeritatem, altam facultatem.
4. Haec machina adhibetur ut filum aeneum subductium, nucleum chalybeum aluminium filum e filo nexante et funiculum ferreum. Etiam adhiberi potest ad filum chalybeum et filum insulatum subductis.
| Genus machina | CD genus | 500 genus | DCXXX genus |
| Unum filum aeris diameter | Ø1.0-2.5mm | 1.3-4.5mm |
| Unum filum diametri ferro | 1.5-3.0 | 1.3-3.5mm |
| Unius aluminii diameter | Ø1.5-4.0mm | 1.8-5mm |
| Max destitutus dia. | 12mm | 15mm |
| picem range | 20-181mm | 20-331mm | 36-274mm |
| Tubus celeritas gyrari | 700r/min | Magna afferentem genus 600r/min | Magna afferentem genus 500r/min |
| Supportantes rota 500r/min | Supportantes rota 350r/min |
| Tractio rota dia | 800 400mm | 1250mm | 1250mm |
| Stipendium-off bobbin intus in peregrino | 400mm | 500mm | 630mm |
| Ut-sursum bobbin magnitudine | PN800-1250mm | PN800-1600mm | PN1200-2000mm |

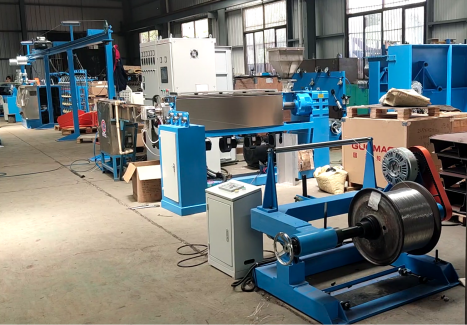

JCJX-70 35 Machina Extruder
Perspicuum consilium cochleae, durabilis, non muci, non tolle chrome, cito muta colorem, capacitatem altam qualitatem, concentricitas filum plus quam 90%, magna subtilitate ±0.03. Cum tactu screen PLC potestate, operatio facilis, plus hommization.
1. Ritus: usus est pro fune cum PVC, LDPE, NYLON, TPU.
2. Productio linea consistit: redde, machina principalis, arca principalis, fixum canale, tractus, sume sursum.
3. Partes libitae: eruca, machina scintillans, diametri probatio laser METIOR, LSZH cochlea, genus ganeliae tolle et redde, genus scapulae finem tolle et redde.
| Type | JCJX-30 | JCJX-40 | JCJX-50 | JCJX-60 | JCJX-70 | JCJX-80 | JCJX-90 |
| Screw Dia.(mm) | 30 | 40 | 50 | 60 | Ø70 | 80 | 90 |
| Screw L/D Ratio | 25:1 | 25:1 | 25:1 | 25:1 | 25:1 | 25:1 | 25:1 |
| Extrusio Capacitas (kg/h) PVC | 25 | 40 | 80 | 100 | 130 | 200 | 240 |
| Extrusio Capacitas (kg/h) LDPE | 16 | 20 | 40 | 53 | 86 | 122 | 133 |
| Extrusio capacitas (kg/h) PP | 13 | 17 | 34 | 41 | 68 | 96 | 124 |
| Main Motor Power | 5.5 | 7.5 | 11 | 18.5 | 22-37 | 30-55 | 37-75 |
| Totalis potentiae | 21 | 24 | 28 | 42 | 50 | 65 | 75-113 |
| Perfecti Diae. (mm) | 0.2-1 | 0.4-3 | 0.8-5 | 1-8 | 2-12 | 3-25 | 5-35 |
| Redde-off Bobbin Location (mm) | 300/400 | 300/500 | 400/630 | 500/630 | 500/630 | 500/630 | 630/800 |
| Stipendium-off Power | 2.2 | 3.7 | 3.7 | 3.7 | 3.7 | 5.5/7.5 | 7.5/11 |
| Haut-off Unit Type | Capastan | Capastan | Capastan | Capastan | Capastan | Capastan Eruca | Capastan Eruca |
| Haut-off Unit Power | 1.5 | 2.2 | 2.2 | 3.7 | 3.7 | 5.5 | 5.5 |
| Accumulater Longitudo (m) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Accipe-sursum Bobbin Location (mm) | 400/500 | 400/630 | 400/630 | 500/630 | 630/800 | 800/1000 | 630/1250 |
| Accipere-sursum Power | 2.2 | 2.2 | 2.2 | 2.2 | 3.7 | 3.7 | 5.5 |
| Linea velocitatis (m/min) | 10-650 | 10-650 | 10-650 | 10-650 | 10-500 | 10-350 | 10-250 |
| Dimension(m) (L*W*H) | 20*1.5*2.1 | 20*1.6*2.1 | 20*1.7*2.1 | 20*2.5*2.1 | 25*2.5*2.1 | 25*3.2*2.1 | 30*3.6*2.1 |
| Pondus (T) | 5 | 6 | 8 | 8 | 8.5 | 7-9 | 9-12 |
JCJX-630/1250 Machina Coiling
Maxime usus est longos rotulos filis vel retinacula in gyros volvere ut faciliorem redderet subsequentem fasciculum, translationem et usum.
Pluma:
1. Tensio latae sententiae reddere unitatem potest, fila in bobbin disposita sunt;
2. Auto redde statuto, solve filum in ordine.
3. Maximum efficientiam, generaliter, produce700 in 8 horas, ter leva.
| Model | Φ630mm | Φ1250mm | Φ1250-Φ1600mm |
| Filum applicabile | 0.5-6mm2 | 10-70mm2 | 10-240mm2 |
| Contentionem peragens | Automatarie |
| Praecipua celeritas motoris | 0-600 r/min | 0-300 r/min | 0-300 r/min |
| Locum bombin genus | Vectis-genus | Electrica genus | Electrica genus |
| Exolle-bibbin exemplar | Φ400-630mm | Φ800-1250mm | Φ1000-1600mm |
| Ictibus exemplar | Extra Dia .≤320mm Interiorem Dia. 120mm Width30-100mm | Extra Dia.≤600mm Interiorem Dia. 200300mm Width60-150mm 150-200mm | 50-250 |
| Power | 2.2kw | 3kw | 4kw |
| Metrum conta structuram | Typus rotae pressionis | Rota duplex genus cum aerem pressura | Rota duplici typus cum aere pressura |
| Inductio genus/ Mensuratio accuratio | Gyratorius encoder/0.5% | Gyratorius encoder/0.5% | Gyratorius encoder/0.5% |
