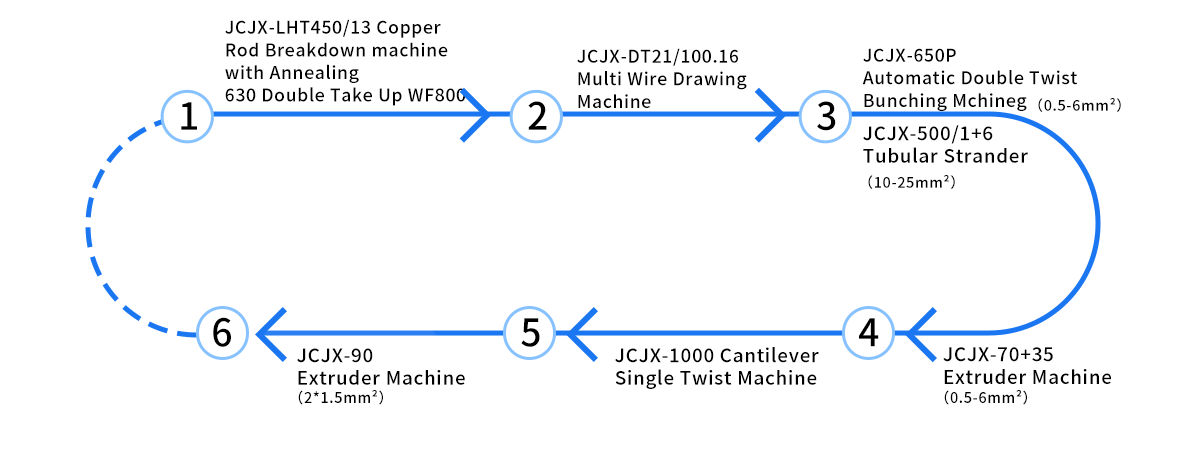

Altiore instrumenti consilio talis est:
1. LHT450/13 Apparatus Cuprei Rod Naufragii Cum Annealing Ducens ex 8mm filum aeneum ad 1.2-3.5mm
2. JCJX-DT21/100.16 Multi filum trahens Machina Profer 0.15-0.5mm fila subtilia
3. JCJX-650P Automatic Duplex tortum Machina volvens, torquent 19-84 fila ad conductores mollis tortuosos producere metrorum quadratorum 0.5-6
4. JCJX-70 35 Extruder Machine Insulation extrusion for 0.5-6 square wires
5. JCJX-1000 Cantilena singula torquent machinae 2-5 nucleus insularum

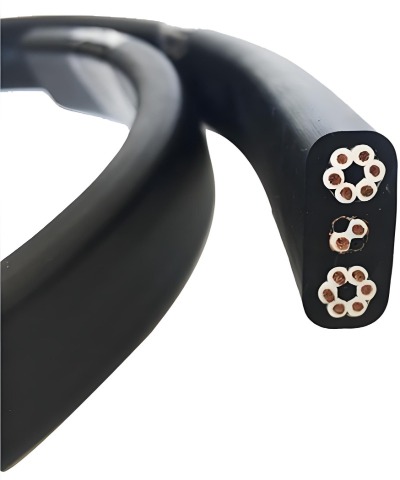

6. JCJX-90 Machina extrusorium Prospicere vaginam 2-5 core funem ac 2 * 1.5mm2 filum planae

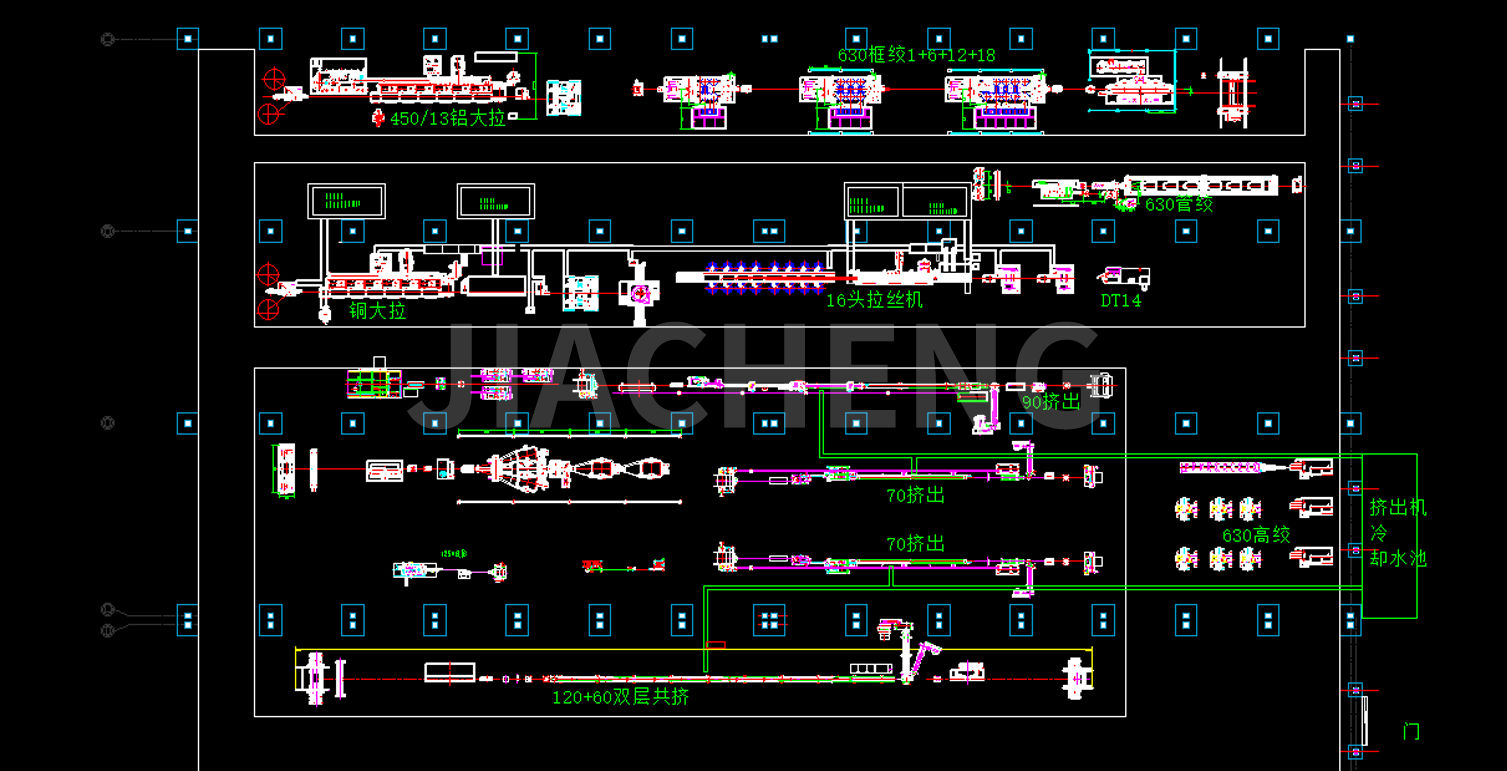

Lorem Factory consilio drawings

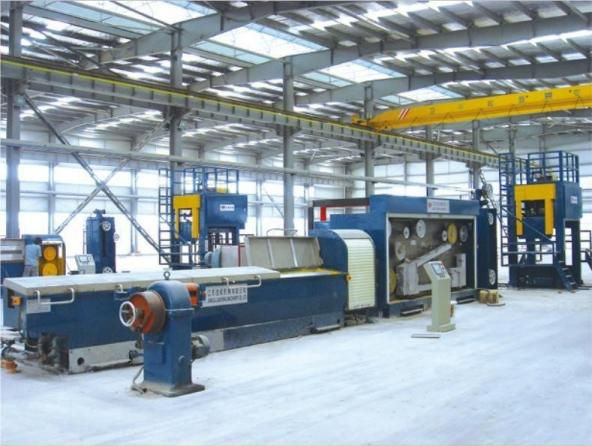

(1) LHT450/13 Copper Rod Naufragii Machina Cum Annealing
JCJX-LHT450/13 alta velocitas machinae aeris naufragii est 8mm vulgare, virga cuprea ad ∮1.2-3.5mm filum cupreum molle. Capstae ductae in linea dispositae sunt quae continue magna celeritate trahendi laborare potest. Partes mechanicae et electricae potestates sibi invicem pares et faciles agunt, mutatio sine mora decedit et ad spools mutando automatice. Haec machina est cum lineamentis operationis faciliae, altae efficientiae et boni operis producti qualitas.
| Apparatus Type | LHT450/13 | LHT450/11 | LHT450/9 |
| Max.Inlet Dia. (mm) | φ8 | φ8 | φ8 |
| Exitus Diae.(mm) | φ1.2-4.0 | φ1.5-4.0 | φ2.1-4.0 |
| Max.Die No. | 13 | 11 | 9 |
| Maximilianus. linea celeritate (m / s * | 25 | 22 | 20 |
| Corpus compages | Ironed cast |
| Transmissio genus | Per altum cura stridor calces |
| Figere celeritatem ergastulum Diae.(mm) | Figere celeritatem ergastulum Diae.(mm) |
| drawing gubernator | φ450 |
| Principalis potentia motoris (KW) | Obductis tungsten |
| Motor fix celeritas erga (KW) | 280 |
| Lubricatio genus | 75 |
| Lubricatio genus | immersio |
| Ad libitum armorum | 1. 450T continua furnum fabrica 2. Duplex sarculum-usque 3. Coiler 4、WS-M accipe-up |
| Online Continui Annealing Fabrica |
| Apparatus Typus | 450T | 450TB |
| Anneniae filum Dia. (mm) | 1.2-3.5 | 1.2-4.2 |
| Anneratio Voltage(V) | 0-60 | 0-60 |
| Anneninge Current(A) | 0-6000A (DC) | 0-5000A (AC) |
| Maximilianus. Annening Celeritas(m/s) | 25 |

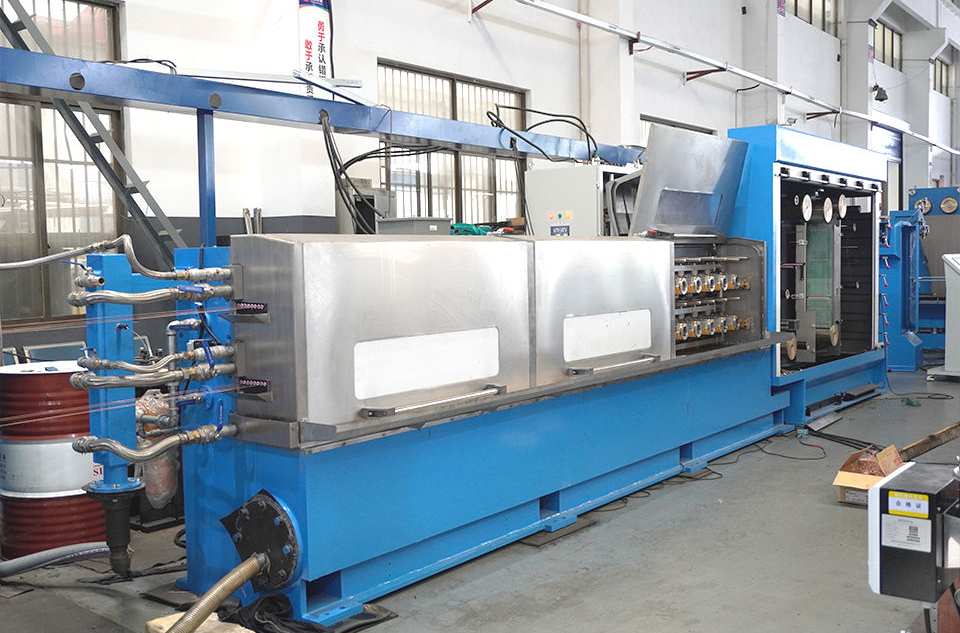

(2)JCJX-DT21/100.16 Multi filum trahens Machina
Una e praecipuis commoda machinae multi-filae extractionis altae est eius productivity. Simul plura fila trahendo, machina signanter output auget comparata ad machinas singulas filum trahendorum traditum. Multi-fila machinarum tractus versatiles sunt et varias virgas metallicas et fasciculos filum, inclusos cuprum, aluminium, et earum mixturas tractare possunt.
Output diameter: 0.15-0.5mm fac fila subtilia
| Apparatus Type | DT18/120.4 | DT24/100.16 | DT24/100.20 |
| Drawing Wire No. | IV Fila | 16 Fila | XX Fila |
| Maximilianus. Die No. | 18 | 24 | 24 |
| Maximilianus. Inlet Dia (mm) | 1.85 | 2.6 | 2.6 |
| Exitus Diae.(mm) | 0.25- 0.7 | 0.16- 0.4 | 0.16- 0.4 |
| Drawing Capstan Dia. | Ø120 | 100 | 100 |
| Maximilianus. Celeritate trahens (m / s) | 25 | 30 | 30 |

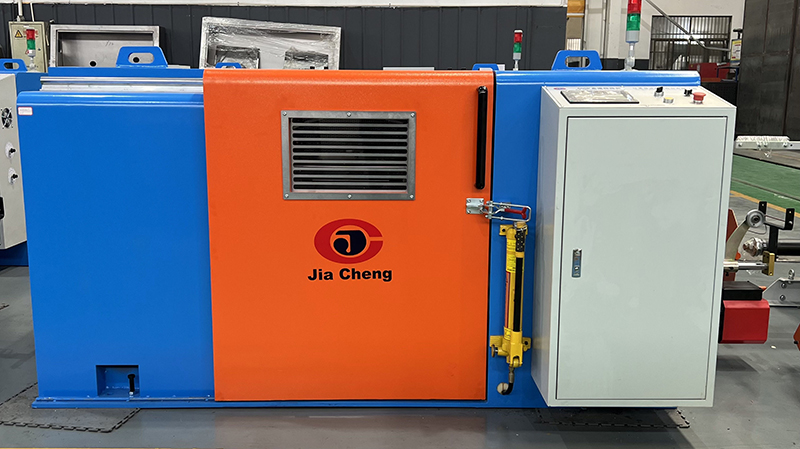

(3) JCJX-650P Automatic Duplex Twist Bunching Machina
Apte est filum aeneum nudum, filum stanneum et filum varnished, quod plusquam 7 fila detorquere est, Magnetica fregit, quae latae cum confractione filum fregit, tensiones magneticum pulveris genus defessa adoptat.
| Apparatus Type | JCJX-650P | JCJX-800P | JCJX-1000 |
| Usus | Ad collectionem 7 aeris nudum, filum stincti, filum nominatum |
| Imperium Type | PLC HMI Inverter imperium |
| Sectio tortuosa (mm2) | 0.18-6.00 | 2.5-16.00 | 8.00-20.00 |
| Filum aeris Dia.(mm) | Φ0.18-Φ1.00 | Φ0.50-Φ1.20 | Φ0.72-Φ6.0 |
| Torquens Pix (mm) | 11.61-99.04 | 22.51-152.32 | 22.73-173.66 |
| Directio torquentem | S vel Z * |
| Accipe-sursum tensio | Contentio magnetica defessa moderata |
| Max Main Shaft Volo (r / min) | 2000 | 1200 | 800 |
| Percurso Type | Distantia transversa et transversalis adaptari potest portando |
| ferens Lubrication | Oleum tenue lubricatum, circulatio refrigerationis | Cum caliditas oleum papilla lubricantes | Cum caliditas oleum papilla lubricantes |
| Bobbin Loading & Unloading Type | Genus HYDRAULICUS |
| Maximilianus. Bobbin Dia. | Φ630 | Φ800 | Φ1000 |
| Auto Nolite Unit | Auto- siste dum ad occasum longitudinis, et filum intus et extra fractum |
| Fregit | Magnetic fregit |
| Motor Power(kw) | 7.5 | 11 | 22 |
| Pelagus Shaft Altitudo Centre (mm) | 850 | 900 | 1100 |

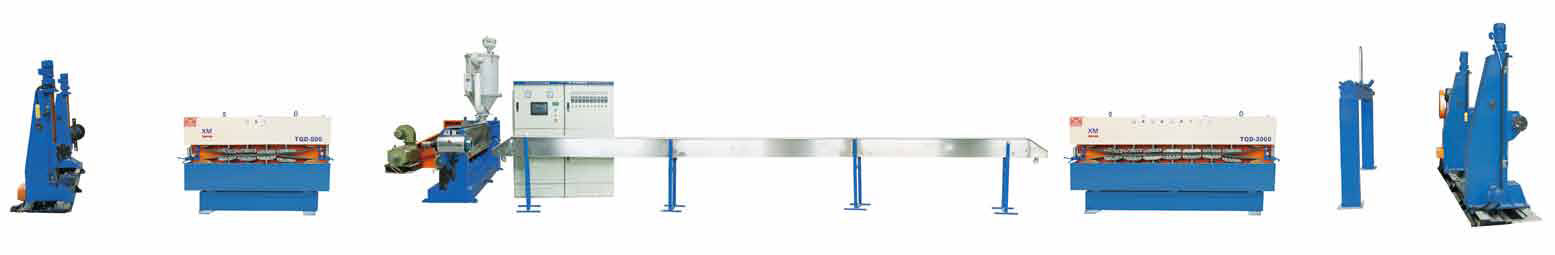

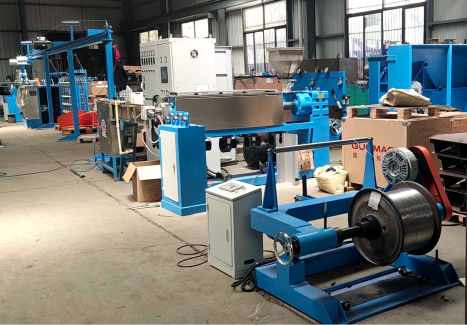

(4) JCJX-70 35 Machina Extruder
Perspicuum consilium cochleae, durabilis, non muci, non tolle chrome, cito muta colorem, capacitatem altam qualitatem, concentricitas filum plus quam 90%, magna subtilitate ±0.03. Cum tactu screen PLC potestate, operatio facilis, plus hommization.
1. Ritus: usus est pro fune cum PVC, LDPE, NYLON, TPU.
2. Productio linea consistit: redde, machina principalis, arca principalis, fixum canale, tractus, sume sursum.
3. Partes libitae: eruca, machina scintillans, diametri probatio laser METIOR, LSZH cochlea, genus ganeliae tolle et redde, genus scapulae finem tolle et redde.
| Type | JCJX-30 | JCJX-40 | JCJX-50 | JCJX-60 | JCJX-70 | JCJX-80 | JCJX-90 |
| Screw Dia.(mm) | 30 | 40 | 50 | 60 | Ø70 | 80 | 90 |
| Screw L/D Ratio | 25:1 | 25:1 | 25:1 | 25:1 | 25:1 | 25:1 | 25:1 |
| Extrusio Capacitas (kg/h) PVC | 25 | 40 | 80 | 100 | 130 | 200 | 240 |
| Extrusio Capacitas (kg/h) LDPE | 16 | 20 | 40 | 53 | 86 | 122 | 133 |
| Extrusio Capacitas (kg/h) PP* | 13 | 17 | 34 | 41 | 68 | 96 | 124 |
| Main Motor Power | 5.5 | 7.5 | 11 | 18.5 | 22-37 | 30-55 | 37-75 |
| Totalis potentiae | 21 | 24 | 28 | 42 | 50 | 65 | 75-113 |
| Perfecti Diae. (mm) | 0.2-1 | 0.4-3 | 0.8-5 | 1-8 | 2-12 | 3-25 | 5-35 |
| Redde-off Bobbin Location (mm) | 300/400 | 300/500 | 400/630 | 500/630 | 500/630 | 500/630 | 630/800 |
| Stipendium-off Power | 2.2 | 3.7 | 3.7 | 3.7 | 3.7 | 5.5/7.5 | 7.5/11 |
| Haut-off Unit Type | Capastan | Capastan | Capastan | Capastan | Capastan | Capastan Eruca | Capastan Eruca |
| Haut-off Unit Power | 1.5 | 2.2 | 2.2 | 3.7 | 3.7 | 5.5 | 5.5 |
| Accumulater Longitudo (m) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Accipe-sursum Bobbin Location (mm) | 400/500 | 400/630 | 400/630 | 500/630 | 630/800 | 800/1000 | 630/1250 |
| Accipere-sursum Power | 2.2 | 2.2 | 2.2 | 2.2 | 3.7 | 3.7 | 5.5 |
| Linea velocitatis (m/min) | 10-650 | 10-650 | 10-650 | 10-650 | 10-500 | 10-350 | 10-250 |
| Dimension(m) (L*W*H) | 20*1.5*2.1 | 20*1.6*2.1 | 20*1.7*2.1 | 20*2.5*2.1 | 25*2.5*2.1 | 25*3.2*2.1 | 30*3.6*2.1 |
| Pondus (T) | 5 | 6 | 8 | 8 | 8.5 | 7-9 | 9-12 |

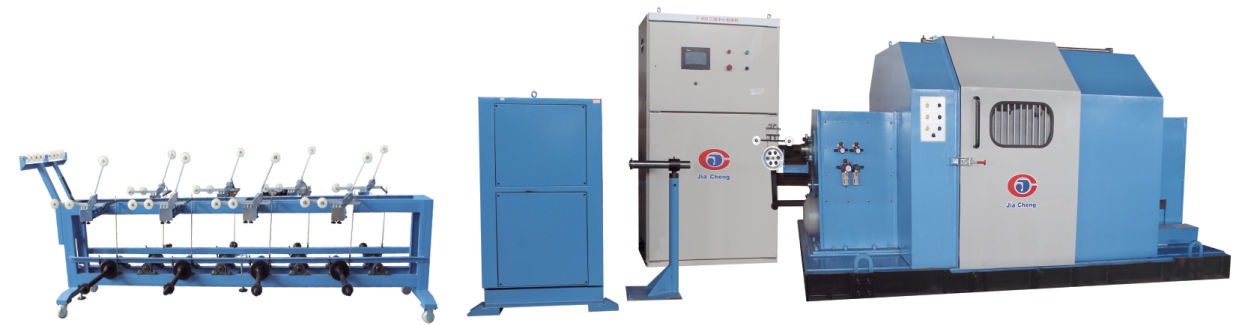

(5) JCJX-1000Cantilever Single Twist Machina
Aptum est ad omnia genera funerum, cabularum communicationis, funiculos speciales retortos, simul centrum involutionis et involutionis lateralis confectae.
| Exemplar | JCJX-630 | JCJX-800 | JCJX-1000 | JCJX-1250 |
| Reddere-off bobbin dia. (mm) | Φ400-Φ500-Φ630 |
| Bobbin dia usque tolle-. (mm) | Φ630 | Φ800 | Φ1000 | Φ1250 |
| Lorem filum dia. (mm) | Φ0.6-3.0 | Φ1.0-5.0 |
| Praecipua motricium virtutis (kw) | 11 | 15 | 15 | 20 |
| Maximilianus. dia-laico.(mm) | Φ15 | Φ20 | Φ25 | Φ30 |
| Torquens picem (mm) | 20-200 | 30-300 | 30-350 | 30-350 |
| No. de rotate (r / min) | 1000 | 800 | 600 | 550 |
| Ut tensio-sursum | Tensio pneumatica |
| Percurso style | Ordinatio inepta, secundum gyrationis celeritatem bobbin et motum reciprocum |
| Distat spatium (mm) | 2-12 | 3-20 | 3-30 | 3-30 |
| Torquens directionem | S vel Z * Direction free designation |
| genus involuti | Centrum filum-involutione vel parte involuti |
(6) JCJX-90 Machina Extruder
Scopum applicativum: applica ad funem insulatum PVC productionem, involucrum nucleum 2-5 nucleum praebe et 2 * 1.5mm2 filum planae.
| Type | JCJX-30 | JCJX-40 | JCJX-50 | JCJX-60 | JCJX-70 | JCJX-80 | JCJX-90 |
| Screw Dia.(mm) | 30 | 40 | 50 | 60 | Ø70 | 80 | 90 |
| Screw L/D Ratio | 25:1 | 25:1 | 25:1 | 25:1 | 25:1 | 25:1 | 25:1 |
| Extrusio Capacitas (kg/h) PVC | 25 | 40 | 80 | 100 | 130 | 200 | 240 |
| Extrusio Capacitas (kg/h) LDPE | 16 | 20 | 40 | 53 | 86 | 122 | 133 |
| Extrusio Capacitas (kg/h) PP* | 13 | 17 | 34 | 41 | 68 | 96 | 124 |
| Main Motor Power | 5.5 | 7.5 | 11 | 18.5 | 22-37 | 30-55 | 37-75 |
| Totalis potentiae | 21 | 24 | 28 | 42 | 50 | 65 | 75-113 |
| Perfecti Diae. (mm) | 0.2-1 | 0.4-3 | 0.8-5 | 1-8 | 2-12 | 3-25 | 5-35 |
| Redde-off Bobbin Location (mm) | 300/400 | 300/500 | 400/630 | 500/630 | 500/630 | 500/630 | 630/800 |
| Stipendium-off Power | 2.2 | 3.7 | 3.7 | 3.7 | 3.7 | 5.5/7.5 | 7.5/11 |
| Haut-off Unit Type | Capastan | Capastan | Capastan | Capastan | Capastan | Capastan Eruca | Capastan Eruca |
| Haut-off Unit Power | 1.5 | 2.2 | 2.2 | 3.7 | 3.7 | 5.5 | 5.5 |
| Accumulater Longitudo (m) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Accipe-sursum Bobbin Location (mm) | 400/500 | 400/630 | 400/630 | 500/630 | 630/800 | 800/1000 | 630/1250 |
| Accipere-sursum Power | 2.2 | 2.2 | 2.2 | 2.2 | 3.7 | 3.7 | 5.5 |
| Linea velocitatis (m/min) | 10-650 | 10-650 | 10-650 | 10-650 | 10-500 | 10-350 | 10-250 |
| Dimension(m) (L*W*H) | 20*1.5*2.1 | 20*1.6*2.1 | 20*1.7*2.1 | 20*2.5*2.1 | 25*2.5*2.1 | 25*3.2*2.1 | 30*3.6*2.1 |
| Pondus (T) | 5 | 6 | 8 | 8 | 8.5 | 7-9 | 9-12 |
